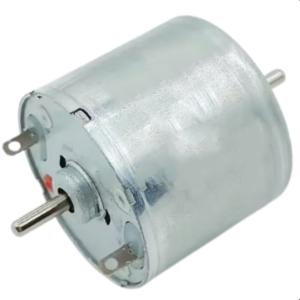

Micro 320 Motor 24mm Standard Motor Dual Shaft Motor DC3V 3.7V 5V 6000RPM For DIY Toy

Micro 320 Motor 24mm Standard Motor Dual Shaft DC3V 3.7V 5V 6000RPM for DIY Toy

Motor Technical Paramter

ModleType:RF-320 Motor/RK-320 Motor
Motor Diameter:24mm-24.4mm
Motor Body Length (Without shaft length):20mm
Motor Step Height:1.4mm
Motor Step Diameter:6.4mm
Motor Shaft Length:Can be custom
Motor Diameter: 1.5mm
Motor Screw Hole Size:M2*0.4mm
End Terminal Distance:18.1mm

Brand: Standard Motor
Model: RK320/RF320 Dual Shaft Motor
Output shaft length: front shaft 7.6mm/ rear shaft 6.7mm
Weight: 32g
Voltage range: DC 3.0V-7.4V
Test data:

Voltage:3.0V No-load speed:6800RPM No-load current:0.10A

Voltage:5.0V No-load speed:11000RPM No-load current:0.12A

Voltage:6.0V No-load speed:13500RPM No-load current:0.13A

Voltage:7.4V No-load speed:17000RPM No-load current:0.20A

320 Dual Shaft Micro Motor Key Point

Premium Efficiency:Boasts IE 1 efficiency, ensuring optimal power conversion for your electric motor for attic fan needs.

High Speed Range:Achieve high-performance with a speed range of 6800RPM-17000RPM, ideal for mini car electric motor applications.

Dual Shaft Design:Features a dual 2mm shaft, enhancing versatility for various DIY toy fan models and home appliance projects.

Compact Size:At just 24.3mm in diameter and 20.8mm in height, this mini motor philippines is perfect for space-saving applications.

Wide Voltage Compatibility:Operates efficiently across a broad voltage range of DC 3V-7.4V, making it a versatile emporium motor choice.

Dual-Shaft vs. Single-Shaft Micro DC Motors (Below 36V): Features and Advantages

Micro DC motors operating below 36V are widely used in various applications due to their compact size, efficiency, and versatility. These motors are available in both dual-shaft and single-shaft configurations, each offering unique features and advantages. Below is a detailed comparison:

Dual-Shaft Micro DC Motors

1.Features:

• Two Output Shafts: Extends from both ends of the motor, allowing power transmission in two directions.

• Symmetrical Design: Balanced structure for even distribution of mechanical loads.

• Flexible Mounting: Can be installed in multiple orientations to suit different mechanical setups.

2.Advantages:

1. Versatility:

   • Enables simultaneous power transmission to two separate mechanisms, such as dual-wheel drives or synchronized systems.

   • Ideal for applications requiring bidirectional output, like conveyor belts or robotic arms.

2. Improved Stability:

   • The symmetrical design reduces vibration and ensures smoother operation, especially in high-speed applications.

3. Ease of Integration:

   • Simplifies mechanical design by allowing direct connection to multiple components without additional couplings.

4. Customizable:

   • Shaft lengths and diameters can be tailored to meet specific application requirements.

Single-Shaft Micro DC Motors

1.Features:

• One Output Shaft: Extends from one end of the motor, providing power transmission in a single direction.

• Compact Design: Smaller footprint, making it ideal for space-constrained applications.

• Simplified Assembly: Easier to install and integrate into systems.

2.Advantages:

1. Space Efficiency:

   • Compact design saves space, making it suitable for small devices like drones, cameras, or portable gadgets.

2. Cost-Effectiveness:

   • Typically less expensive than dual-shaft motors due to simpler construction.

3. Ease of Control:

   • Single-direction output simplifies control systems, reducing complexity in design and operation.

4. High Precision:

   • Ideal for applications requiring precise motion control, such as autofocus mechanisms or small actuators.

Comparison Summary

Why Choose Dual-Shaft or Single-Shaft Motors?

• Dual-Shaft Motors: Ideal for applications requiring bidirectional power transmission, synchronized systems, or high stability.

• Single-Shaft Motors: Perfect for space-constrained designs, cost-sensitive projects, or single-direction applications.

Ideal for Engineers & Manufacturers – Whether you need the versatility of a dual-shaft motor or the compact efficiency of a single-shaft motor, micro DC motors below 36V offer reliable and customizable solutions for your projects.

Customizable options available | Bulk pricing | Global shipping.
